Zill O'll Infinite Plus Translation Project

Some scattered thoughts.

I’ve been having a lot of fun hacking away at old video games, and lately most of that time has gone into Zill O’ll Infinite Plus. I’ve never really seen anyone discuss it. It began as a PlayStation game, received a PlayStation 2 remake, and was expanded again for the PSP. None of these were released outside of Japan. There was a prequel released in English, but from what I understand it is mostly unrelated.

I can’t really comment on the game yet, but it seems quite interesting and perhaps not too dissimilar from the SaGa games in uniqueness. The translation has ended up involving archive formats, scene scripts, executable patches, and a lot of PPSSPP debugging.

I’ve made extensive use of AI, tho feeding it Japanese text line by line mostly produces junk. For proper dialogue translation, the AI needs as much context as possible: speakers, full dialogue, branches taken to this specific line, etc., An isolated row in a spreadsheet has none of that.

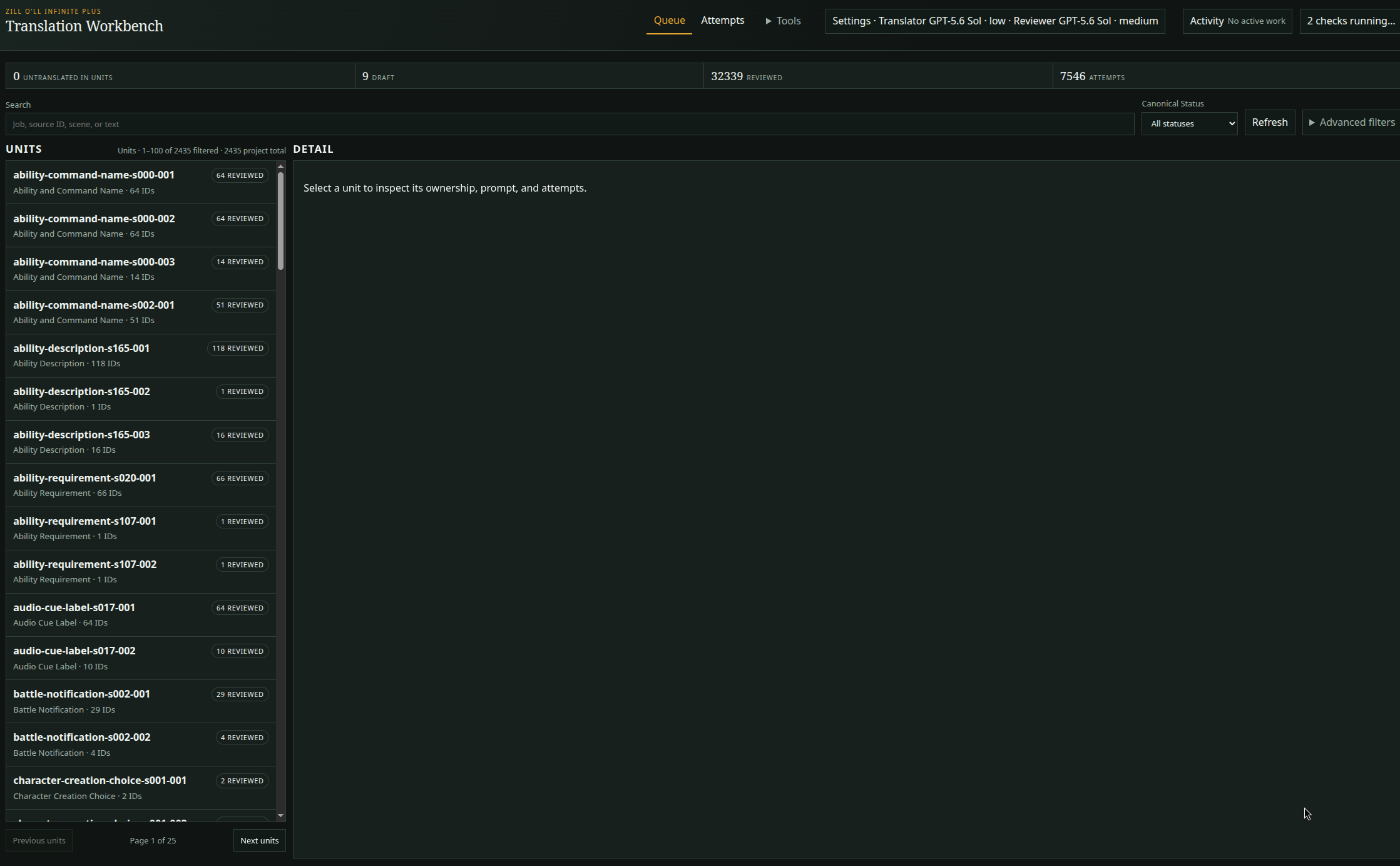

I made a translation dashboard to assist.

The dialogue itself has an embedded scripting language, while also being embedded inside a state machine. There are 279 message banks and 43,116 records, but a record is not necessarily one line. It can contain control codes, substitutions, and several branches, with the scene script deciding which one the player actually sees.

That probably goes a long way towards explaining why nobody has done a proper fan translation. Extracting the strings is not enough; I have to preserve the structure around them too.

When I finally tried building all of the translated banks, six did not fit. This was not just a few badly worded lines. English was a little longer in hundreds of places, and it added up to about 10–25 KB too much in each of the failing banks.

The retail header looked like this:

uint16_t message_count;
uint16_t message_offsets[message_count];
uint8_t  message_data[];

Each offset is measured from the beginning of the bank. The surrounding archive can hold a larger file, but a 16-bit offset means that no message can start past byte 65,535. Shortening a few lines was not going to fix this.

Thankfully, the executable side was not quite as bad as it could have been. I opened the decrypted executable in Rizin and traced the two lookup paths. The current message offset was already held in a word; the limit came from the table math and the lhu instructions that loaded 16-bit values.

I changed the translated banks to this:

uint16_t message_count;
uint16_t reserved;
uint32_t message_offsets[message_count];
uint8_t  message_data[];

The reserved halfword keeps the table aligned for MIPS lw instructions. All 279 translated banks use the new format together. Extraction and the original source files still use the retail layout.

The first version of this patch changed twelve MIPS instructions. That covered the two readers as well as a less obvious message-call return value that could still have truncated a wide offset.

The build checks the source executable and the expected bytes at every patch site before changing anything. I also found that PPSSPP uses EBOOT.BIN when it contains a valid ELF, so patching only BOOT.BIN changes the wrong copy. The built game now gets the same patched decrypted ELF as both files.

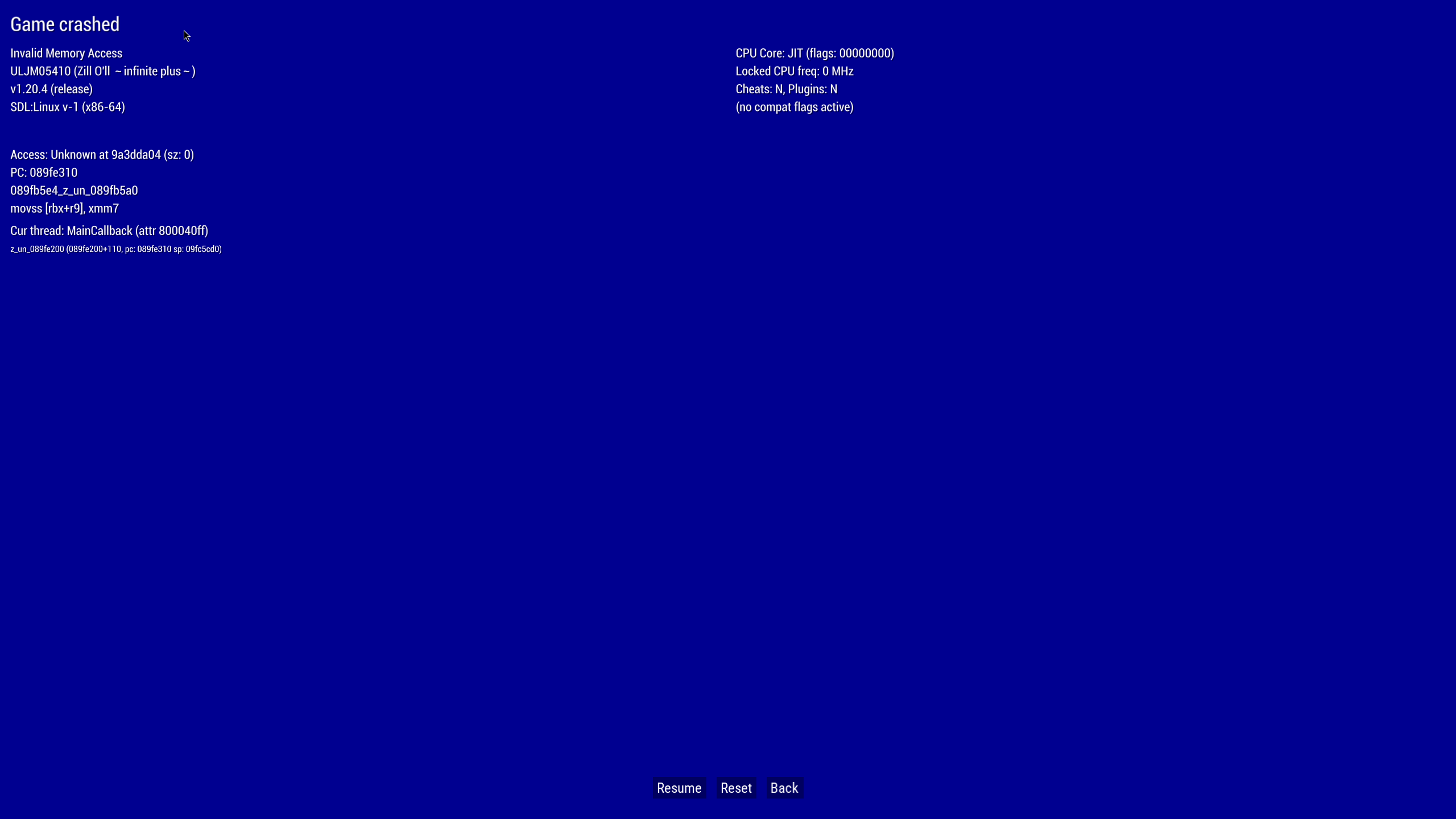

Everything compiled and the game booted. Then it crashed during an opening scene transition.

The CPU had followed an indirect callback to a nonsense address. The corrupted pointer contained a short piece of English dialogue, which made me suspect the small buffer used for expanding one message. The bytes around it turned out to be a continuous piece of msgsec137, though, rather than one expanded string.

This fixed the file format, but not the memory layout. The retail loader was still copying the larger bank into an overlapping static area sized around the original files. msgsec137 ran into the globals after it and overwrote a resource-manager pointer. Not ideal.

I ended up adding a new 0x24000-byte message area to BSS at 0x344000, extending the writable segment through 0x368000. BSS is just zero-initialized writable memory reserved by the executable.

The new area is split up like this:

bank 0                    capacity 0x09000
special sections 165–167 capacity 0x04000
ordinary message banks   capacity 0x17000

I redirected the loader, resolver, and byte reader there, then updated the special-slot addresses, the ordinary-slot initializer, and the ELF metadata. By that point the change involved 21 MIPS instruction edits and two ELF metadata edits. I left the old area allocated because moving the unrelated globals around it did not seem worth the risk.

The build now checks that every compiled bank fits in the place where it will actually be loaded. This is a much more useful error than finding out through a corrupted function pointer.

I also wanted to make sure the old buffer was really unused. I put a PPSSPP read/write watchpoint across the old 0x18800-byte area and played through the opening scene that used to crash. It showed the translated dialogue without a single access to that range.

For one final check, I used the debugger to request message 1370632 from bank 137. Its offset is 65,579, just past the old limit. It rendered normally and the game kept running. This was a much nicer test than wandering around and hoping the right oversized bank happened to appear.

The build checks the banks, patch sites, archive rebuilds, and final executable now, mostly so I do not have to rediscover these problems later. It builds into a temporary game tree and only replaces the previous one after everything has passed.

The font is… not good for English. I will probably make a small glyph patch and maybe look further into the rendering path.

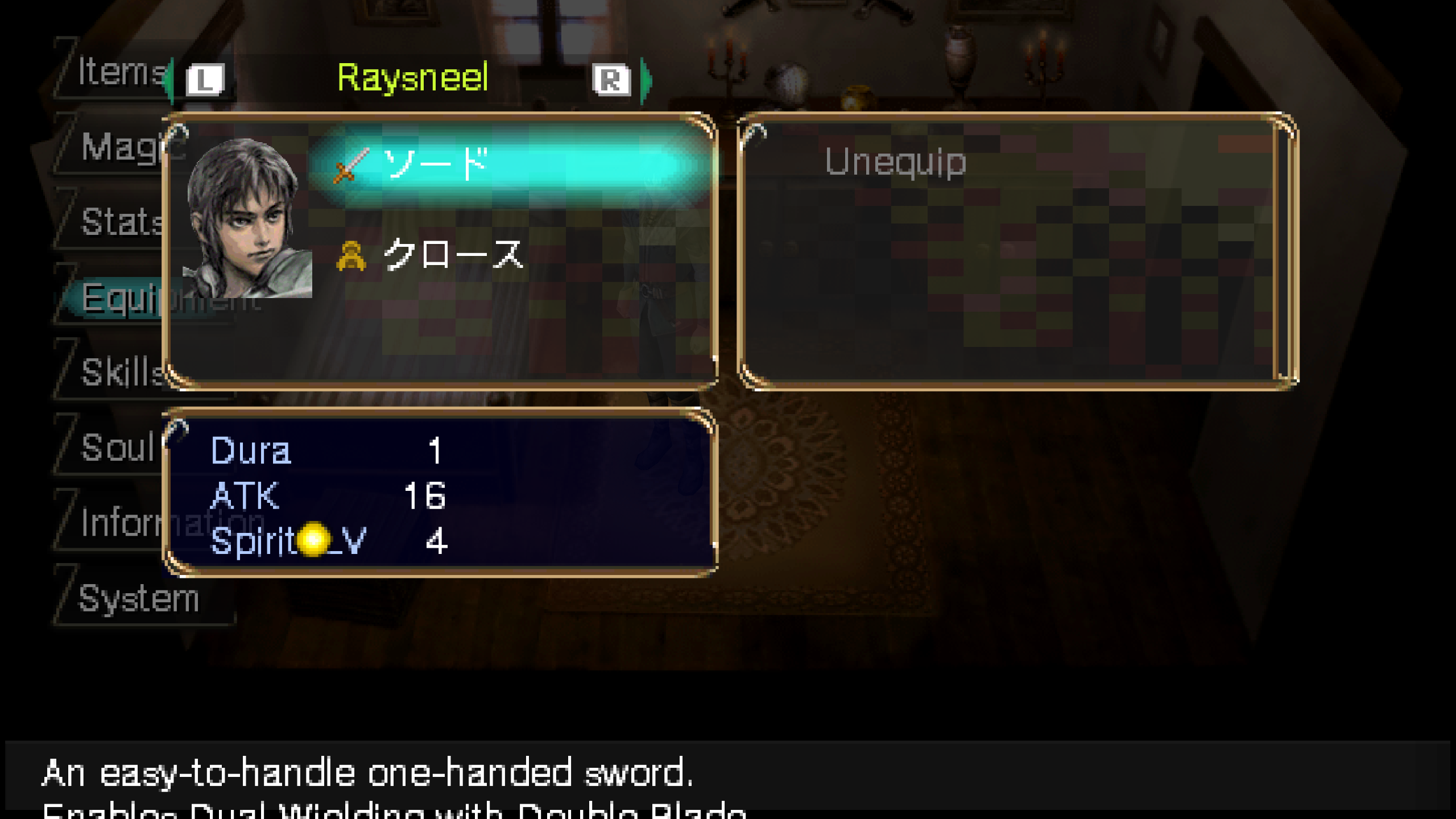

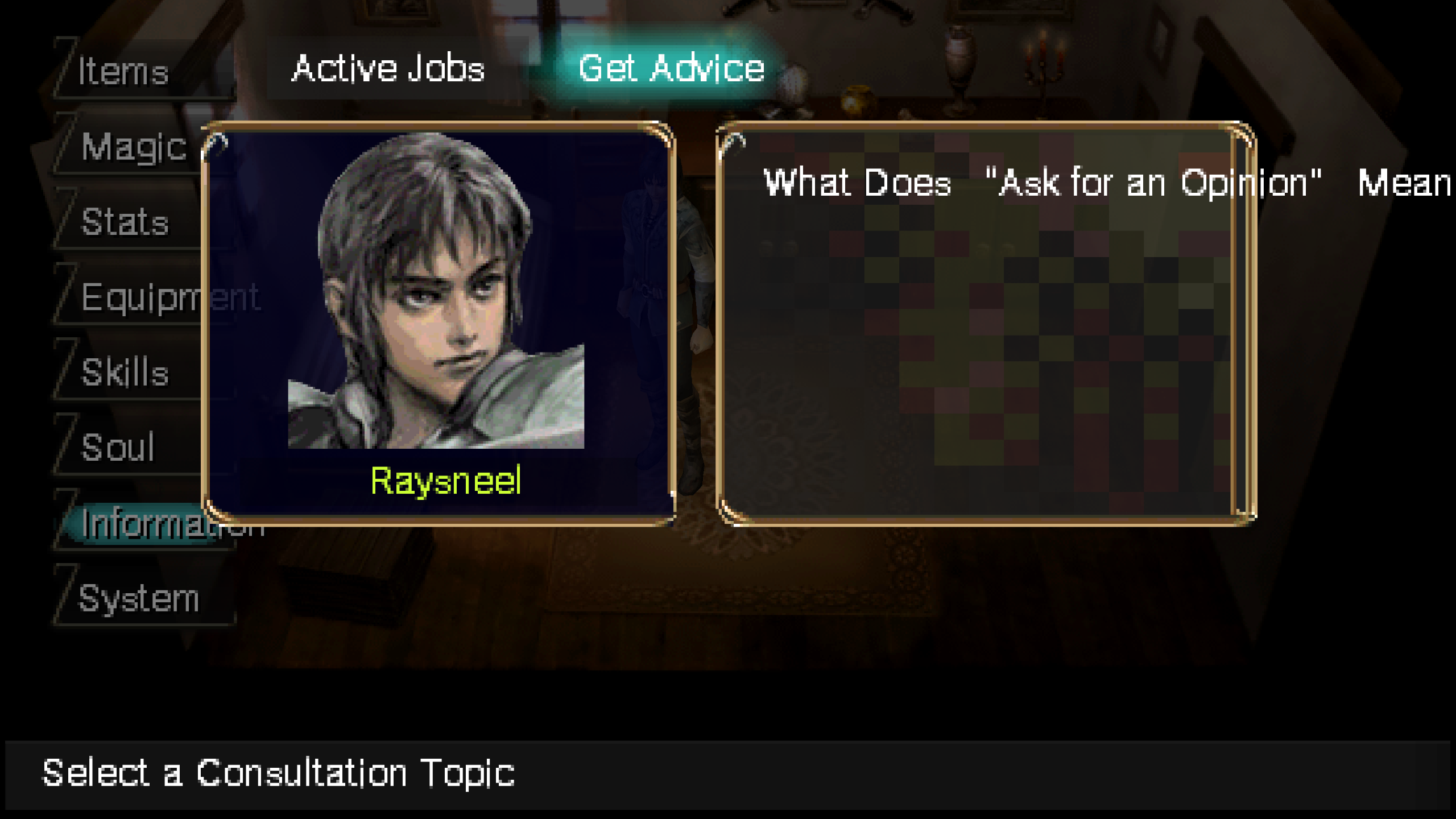

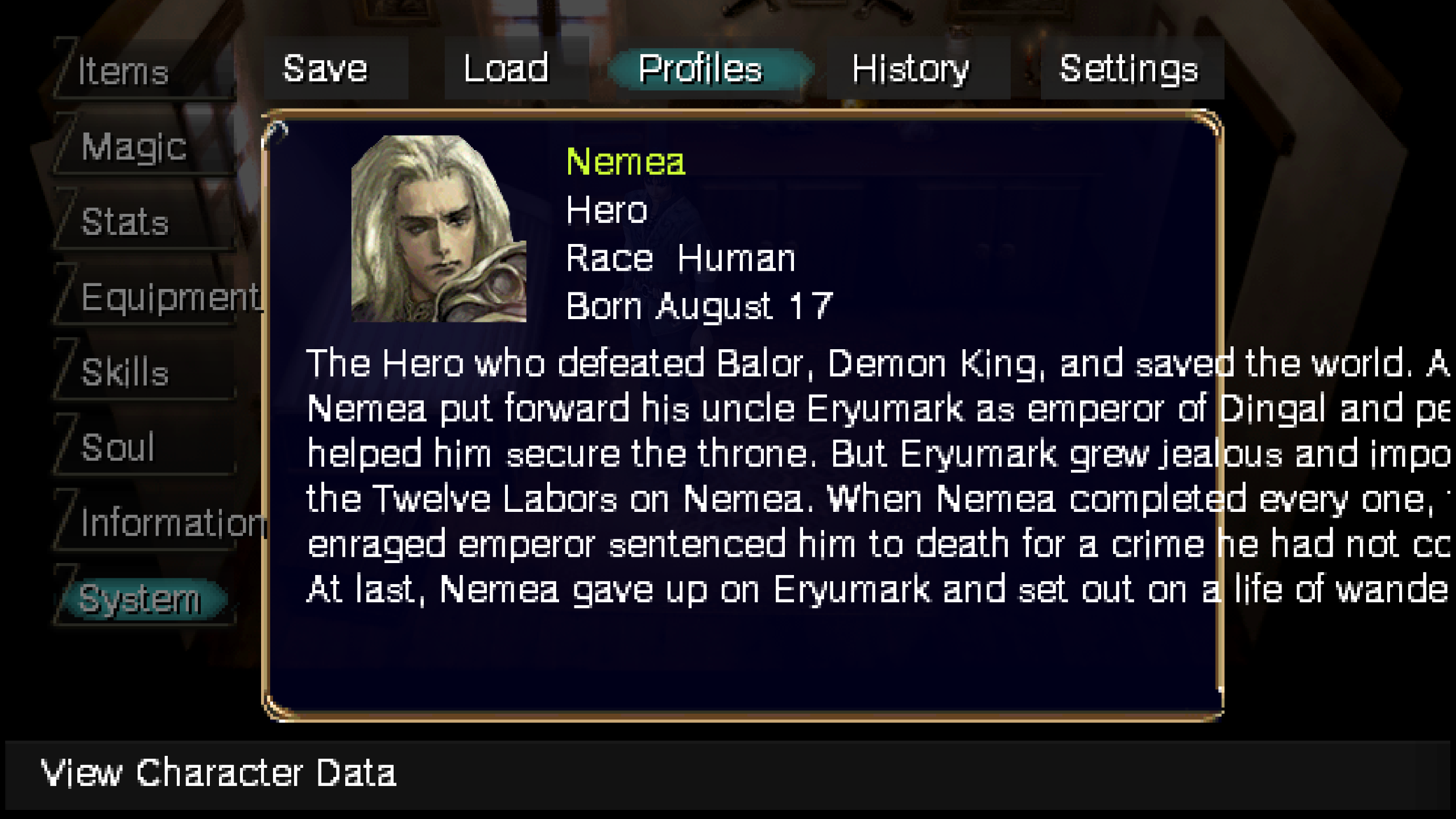

There is still plenty of manual work as well. Profiles, prompts, equipment names, and long descriptions all have slightly different problems, and many of them only become obvious in the game.

Making the banks bigger also does not make every smaller buffer bigger. One overly long response overran its storage and damaged the character name next to it. I traced the write, found the actual byte limit, added it to the validator, and reflowed the affected text.

Some fixes require executable patches. Others are just rules and checks in the tools.

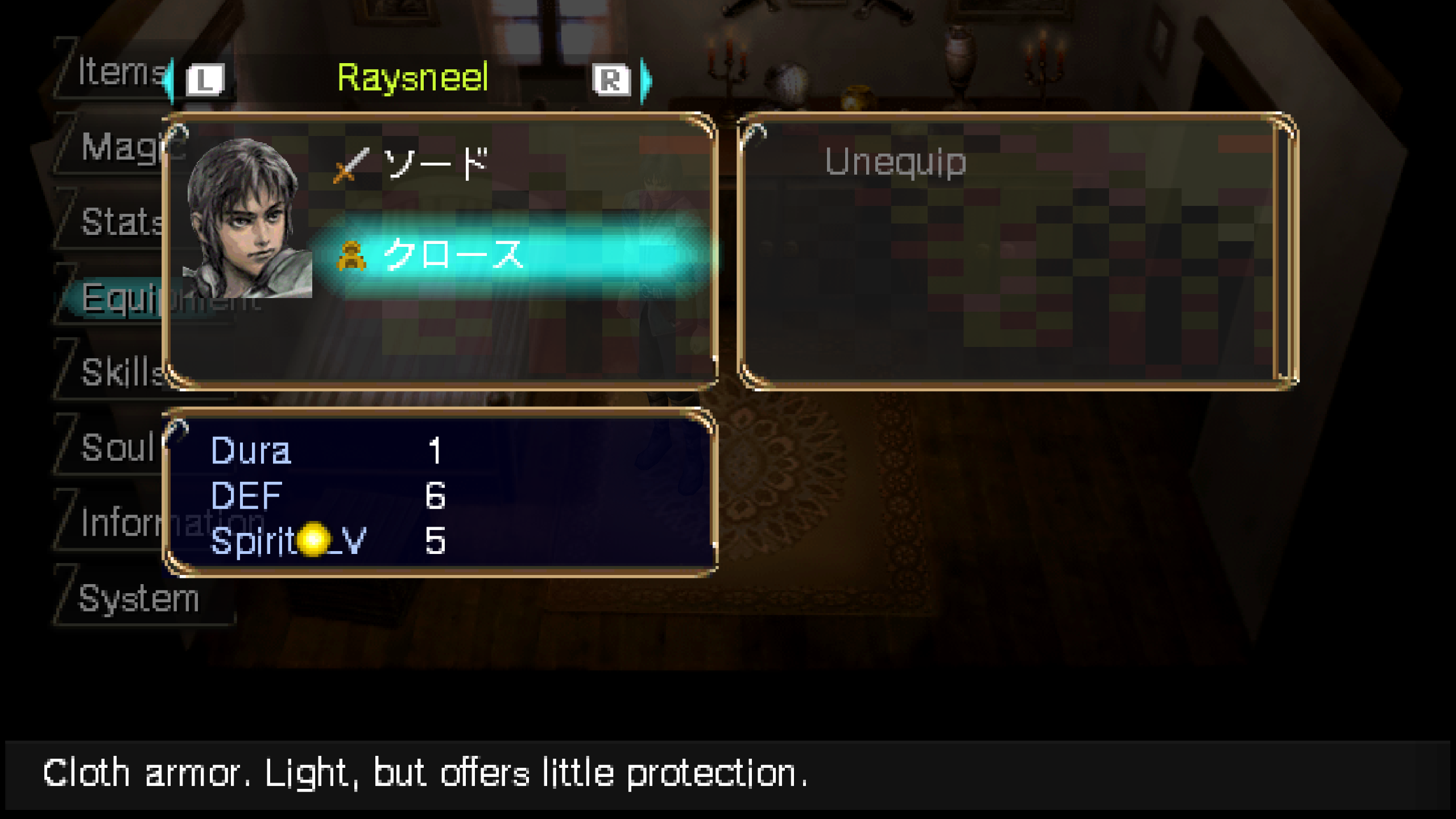

The project can build a complete translated PPSSPP game tree now, including all of the message banks and the executable patches. What is left is mostly QA: reviewing the prose, finding untranslated text, fitting things into odd UI elements, and fixing the font and presentation problems that only show up in-game.

I still want to compare the PSP backgrounds with the PlayStation 2 ones, since they may be higher quality.

I’d like to get a v0.1 out eventually and maybe get some feedback and bug reports. After this much time staring at message banks, I would not mind someone else finding a few problems.
